Good idea! Example of construction of high temperature resistant planting bar adhesive for power station

Jan. 14, 2019

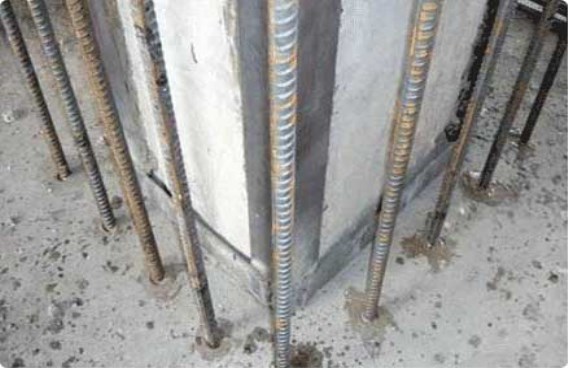

There are many types of power plants today, and today we will give examples of common ones. The main body of a power station is a reinforced concrete frame structure, and the infill wall is MU10 clay perforated brick (KP1 type), and M5 mixed mortar is built. The construction of the tie ribs is large, and the traditional burying method not only damages the stencil but also ensures the construction quality. The high temperature reinforced rubber is used to embed the ribs.





In order to demonstrate the feasibility of planting ribs and the effect of high temperature resistant reinforced rubber, after the first batch of more than 200 planting ribs, the supervisors randomly selected three of them for pullout test. The steel bars examined were Φ6 round steel. The actual hole diameter was 10mm, and the planting depth was 120mm. The bearing capacity of single steel bar design is 5.90kN.



The results of the steel bar drawing test show that when the three ribs reach the design bearing capacity, the dial gauge shows no relative displacement between the steel bar and the concrete. The drawing is continued, and the steel bars are pulled off. There is no looseness at the root of the planting bar. Party A and the supervisory party are satisfied with the results of the planting bar test, and the steel bars can reach the yield without being pulled out. All of the anchored steel bars of the entire project is constructed by the structural planting bar adhesive method.





Practice has proved that the planting bar is operated according to the corresponding regulations, and the steel bar is placed in the concrete to a specified depth, which can ensure that the steel bar is stretched to yield without being pulled out. The design strength of the 6.5mm diameter steel bar is 210N/mm2, and the test yield point is 330~525MPa, mostly for the base material to be broken. The embedded position of the planting bar is accurate, and does not damage the column and wall concrete. The anchor pulling effect is better than the traditional construction method and the construction quality is easy to ensure.

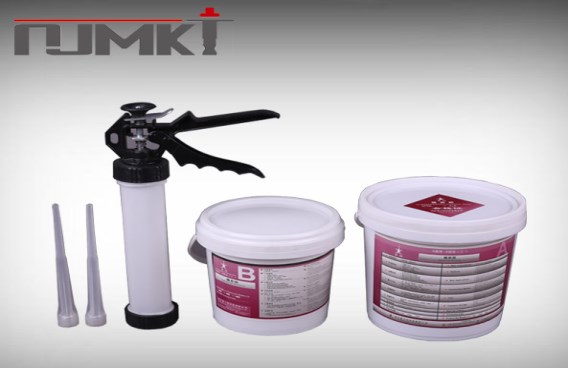

High temperature resistant planting bar adhesive is a key factor in the success of the reinforcement project. Mankate high temperature resistant planting bar adhesive is a solvent-based chemical cohesive modified epoxy adhesive with low density, good thixotropic, fine and non-precipitating. The advantage is that it can be easily injected like our injection-type high temperature resistant planting bar adhesive with our matching glue gun! It’s suitable for rooting and anchoring projects. Component A: Component B = 2:1. If you are interested in this product, please call our one-stop service hotline: 400-894-5118.
