NJMKT Adhesive AnchorNJMKT Adhesive AnchorNJMKT Adhesive Anchor

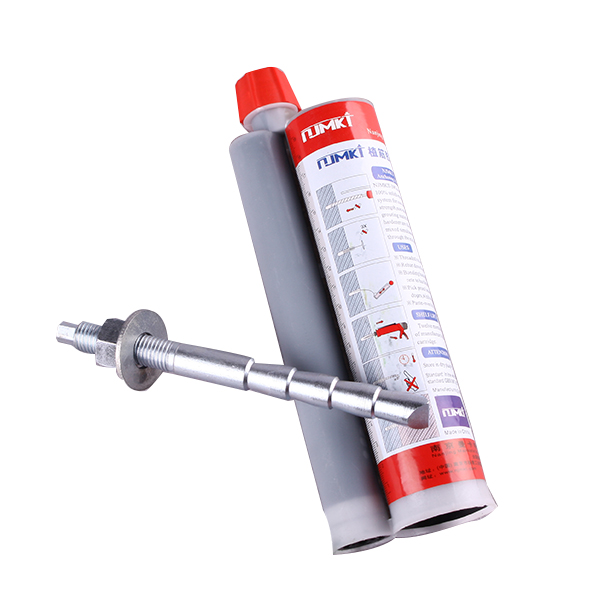

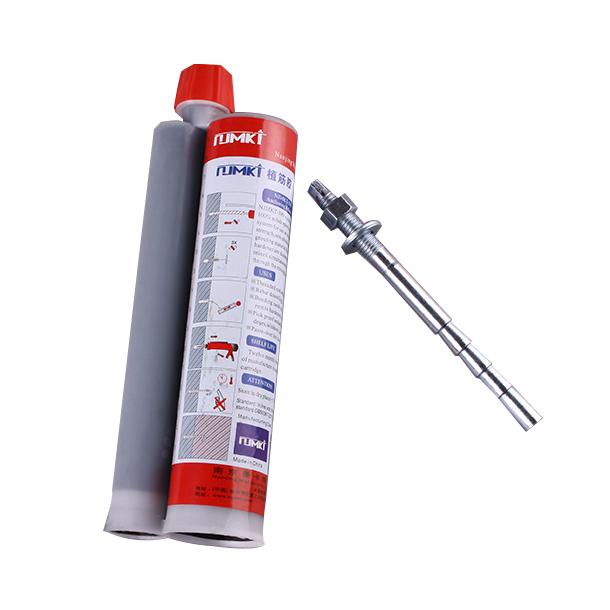

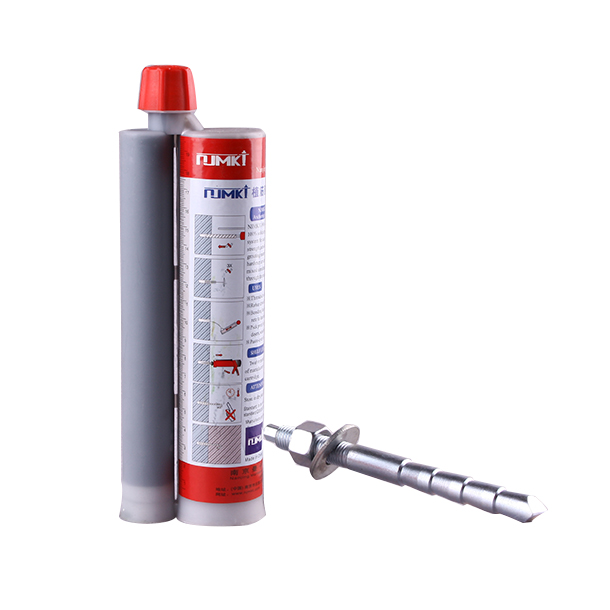

NJMKT Adhesive Anchor

Beautiful appearance with high quality, free from rust during 3100-hour neutral spay test

Share Facebook Twitter LinkedIn Pinterest Google+ Addthis

    ● Material: alloy steel grade 5.8, 6.8, 8.8, 10.9, 12.9; stainless steel 50 70 80

    ● Designed high strength chemical anchor, suitable for all kinds of concrete base material, even cracked concrete

    ● The main components of the chemical cartridge are modified epoxy resin, grade A adhesive; high/low temperature resistance and aging-resistance

    ● We also provide specialized underwater adhesive for damp and water-filled holes for effective anchorage

    ● We recommend our excellent NJMKT Anchorage Adhesive (MT-500 cartridge or barrel) for NJMKT adhesive anchors


    Characteristics

    ● Fast cure, small spacing and edge distance, quick construction efficiency, good weldability

    ● Excellent comprehensive performance, safe and reliable, construction tolerance is higher than conventional chemical anchor, non-toxic environmental protection, aging-resistance up to 50 years and high/low temperature resistance

    ● Comparing with mechanical anchors, the same tensile strength characteristics but low price advantage for your choice

    ● steel structure

    ● bridge and tunnel

    ● industrial plant

    ● building curtain wall

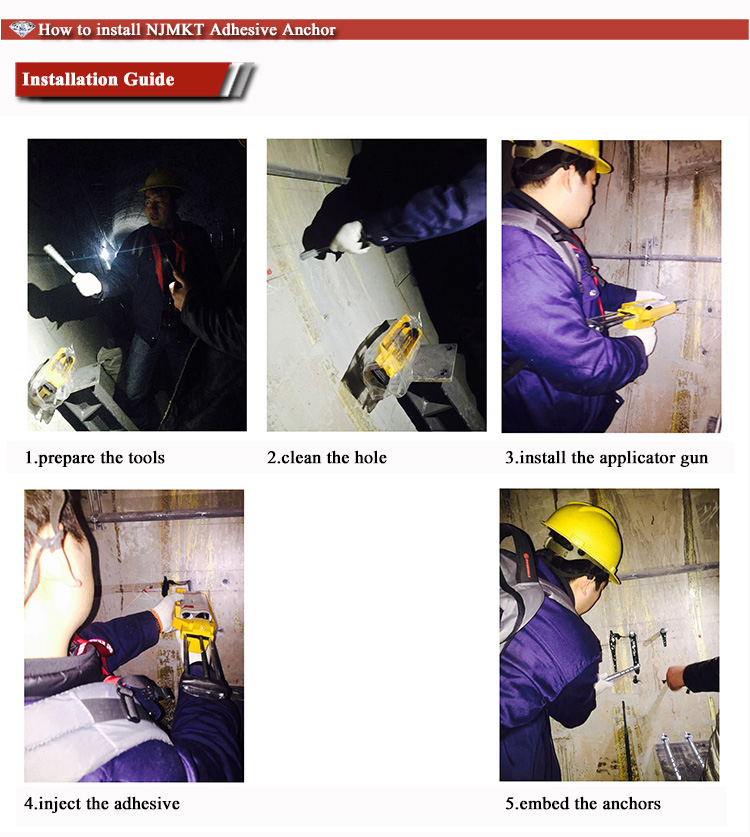

    Installation Guide



    Cure Schedule
    Base material temperature  [°C]Installation time
    [minute]
    Gel time
    [minute]
    Cure time
    [day]
    -5°C ~ 0°C4090 - 1508
    0°C ~ 10°C2550 - 906
    10°C ~ 25°C1535 - 504
    25°C ~ 40°C615 - 352
    ≥ 40°C471







    ● Drill the hole to proper depth and diameter per specifications using drill systems.

    ● Clean the hole using brush and compressed air.

    ● Use specialized cartridge, place the cartridge into the dispensing tool, discard the first several times of injection until an even-colored mixture is extruded.

    ● Insert the mixing nozzle to the bottom of the hole, and inject adhesive until the hole is about 2/3 full.

    ● Embed the steel anchor element to the bottom of drilled hole clockwise slowly.

    ● Check the surface of the hole if there is any overflow to ensure the hole is full. There shall be no gaps between the anchor and the wall of the drilled hole. Clean any excess resin from around the mouth of the hole.

    ● Do not knock or strike the steel during cure time.

    ● Finish installation and continue the follow-up construction.



    Adhesive consumption reference


    Anchor rodDrilled hole diameter
    mm
    Drilled hole depth
    mm
    One cartridge available for hole numbers
    M81080100
    M10129062
    M121411037
    M161812520
    M20241708
    M24282105
    M30352802.4
Description

● Material: alloy steel grade 5.8, 6.8, 8.8, 10.9, 12.9; stainless steel 50 70 80

● Designed high strength chemical anchor, suitable for all kinds of concrete base material, even cracked concrete

● The main components of the chemical cartridge are modified epoxy resin, grade A adhesive; high/low temperature resistance and aging-resistance

● We also provide specialized underwater adhesive for damp and water-filled holes for effective anchorage

● We recommend our excellent NJMKT Anchorage Adhesive (MT-500 cartridge or barrel) for NJMKT adhesive anchors


Characteristics

● Fast cure, small spacing and edge distance, quick construction efficiency, good weldability

● Excellent comprehensive performance, safe and reliable, construction tolerance is higher than conventional chemical anchor, non-toxic environmental protection, aging-resistance up to 50 years and high/low temperature resistance

● Comparing with mechanical anchors, the same tensile strength characteristics but low price advantage for your choice

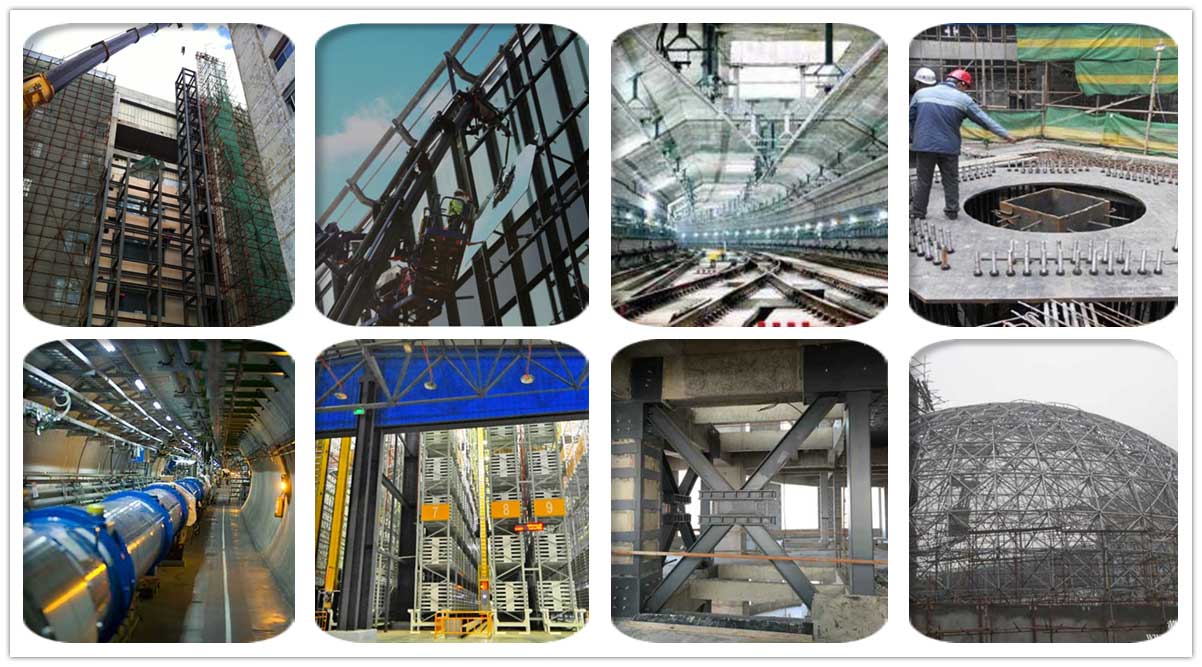

Applications

● steel structure

● bridge and tunnel

● industrial plant

● building curtain wall



Functionality

Installation Guide



Cure Schedule
Base material temperature  [°C]Installation time
[minute]
Gel time
[minute]
Cure time
[day]
-5°C ~ 0°C4090 - 1508
0°C ~ 10°C2550 - 906
10°C ~ 25°C1535 - 504
25°C ~ 40°C615 - 352
≥ 40°C471







● Drill the hole to proper depth and diameter per specifications using drill systems.

● Clean the hole using brush and compressed air.

● Use specialized cartridge, place the cartridge into the dispensing tool, discard the first several times of injection until an even-colored mixture is extruded.

● Insert the mixing nozzle to the bottom of the hole, and inject adhesive until the hole is about 2/3 full.

● Embed the steel anchor element to the bottom of drilled hole clockwise slowly.

● Check the surface of the hole if there is any overflow to ensure the hole is full. There shall be no gaps between the anchor and the wall of the drilled hole. Clean any excess resin from around the mouth of the hole.

● Do not knock or strike the steel during cure time.

● Finish installation and continue the follow-up construction.

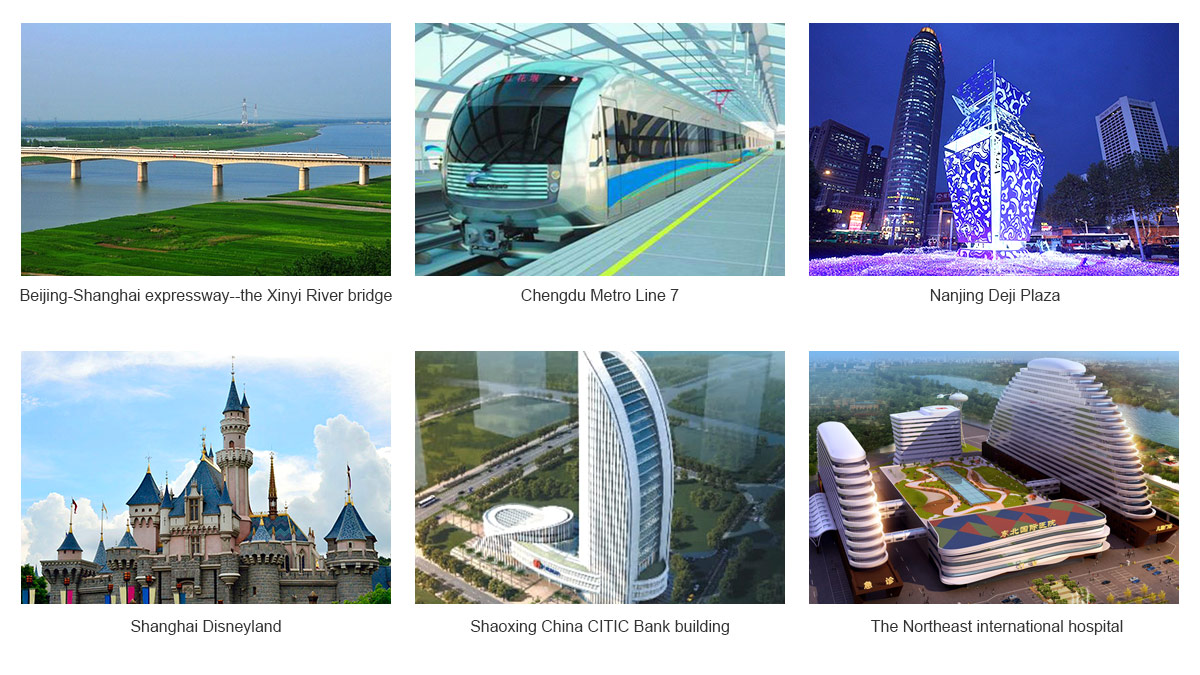

Project


Technical Data

Adhesive consumption reference


Anchor rodDrilled hole diameter
mm
Drilled hole depth
mm
One cartridge available for hole numbers
M81080100
M10129062
M121411037
M161812520
M20241708
M24282105
M30352802.4
