NJMKT Wedge Anchor,Anchor FastenersNJMKT Wedge Anchor,Anchor FastenersNJMKT Wedge Anchor,Anchor Fasteners

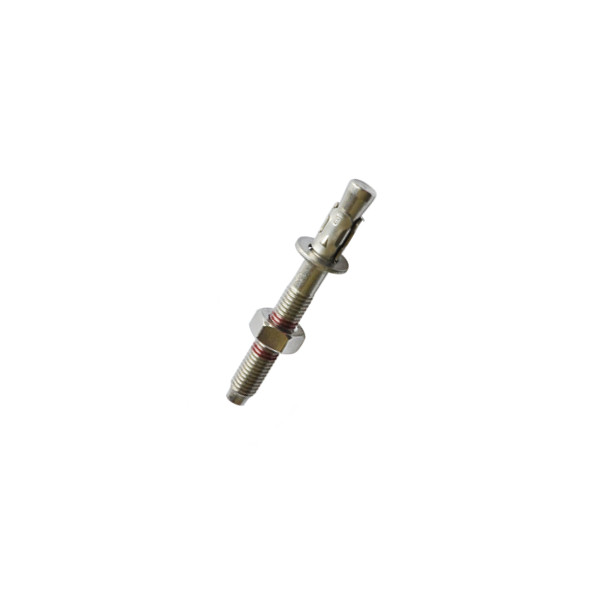

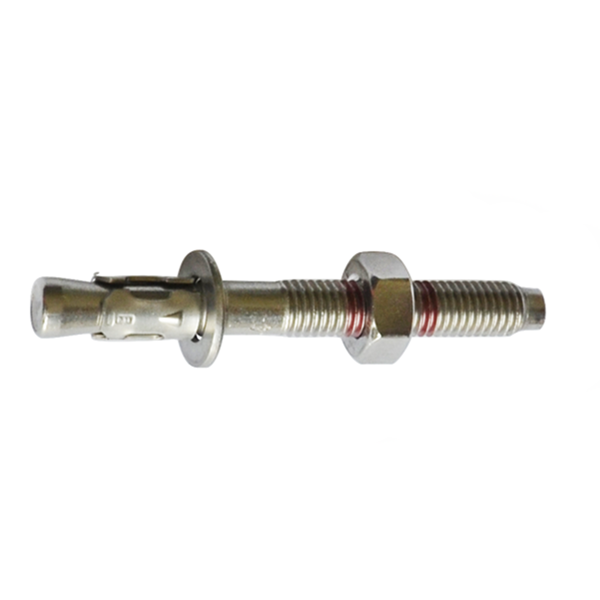

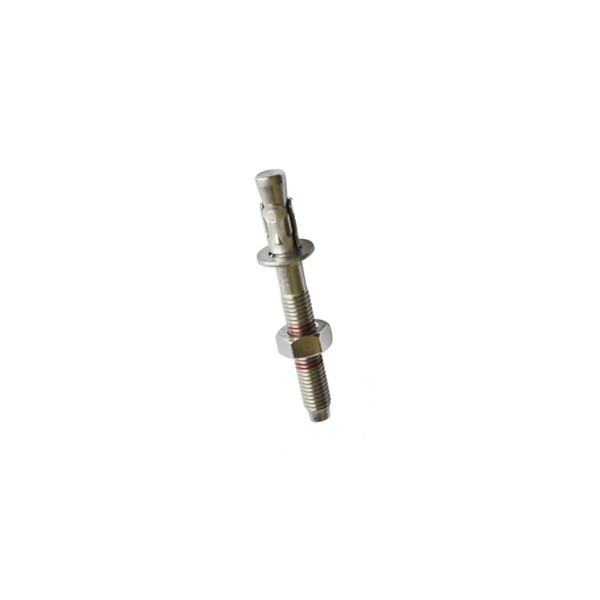

NJMKT Wedge Anchor,Anchor Fasteners

Applicable for tension area or cracked concrete≥C20. Screw up the nut a little, then expansion piece (locking key) will expand, which ensures reliable anchorage inside tension area.

Share Facebook Twitter LinkedIn Pinterest Google+ Addthis

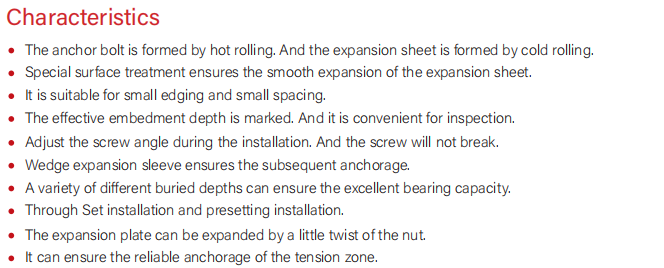

    Features:
    The anchor rod is molded by hot-rolling, expansion piece (locking key) is molded by cold-rolling
    Screw up the nut a little, then expansion piece (locking key) will expand, which ensures reliable anchorage inside tension area.
    Suitable for small spacing distance & edge distance
    Embedment depth is marked, which is convenient for later check.
    When adjusting the angle of anchor rod during installation, the anchor rod won’t be broken.
    Special surface treatment ensures the expansion piece (locking key) to expand smoothly.
    Various embedment depths are available, ensuring the subsequent anchoring force.

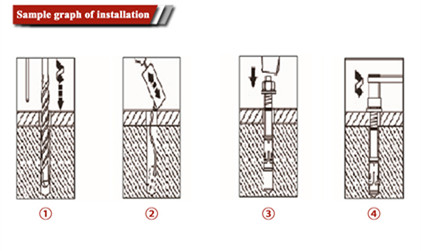

    Through-installation & Pre-installation

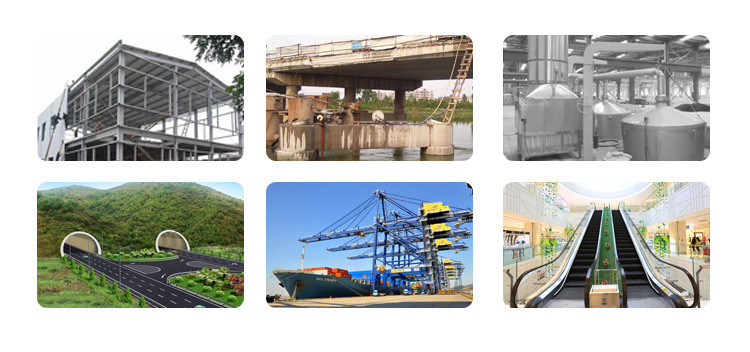

    Application:

    Fixing of equipment, channel steel, guide rail and bracket
    Fixing of impact load
    Fastening of external wall
    Fastening of concrete beam & column
    Fastening of base material
    Fastening of pipeline
    Middle-sized load or below





Description

Features:
The anchor rod is molded by hot-rolling, expansion piece (locking key) is molded by cold-rolling
Screw up the nut a little, then expansion piece (locking key) will expand, which ensures reliable anchorage inside tension area.
Suitable for small spacing distance & edge distance
Embedment depth is marked, which is convenient for later check.
When adjusting the angle of anchor rod during installation, the anchor rod won’t be broken.
Special surface treatment ensures the expansion piece (locking key) to expand smoothly.
Various embedment depths are available, ensuring the subsequent anchoring force.
Through-installation & Pre-installation

Applications



Application:

Fixing of equipment, channel steel, guide rail and bracket
Fixing of impact load
Fastening of external wall
Fastening of concrete beam & column
Fastening of base material
Fastening of pipeline
Middle-sized load or below



Functionality

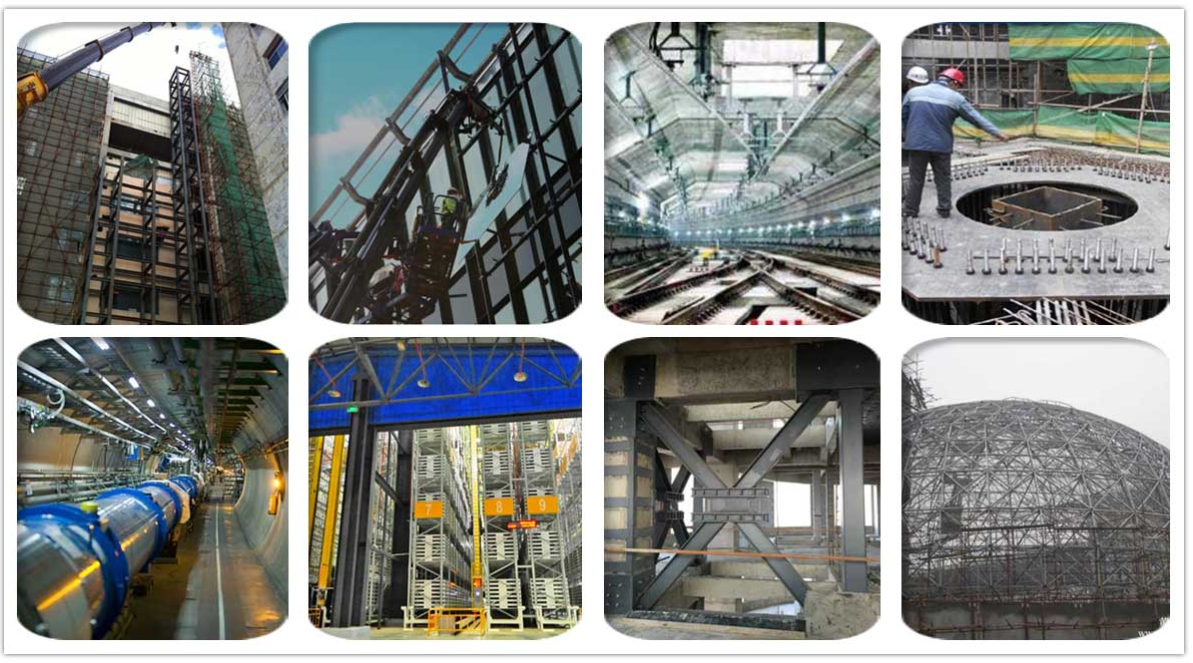

Project

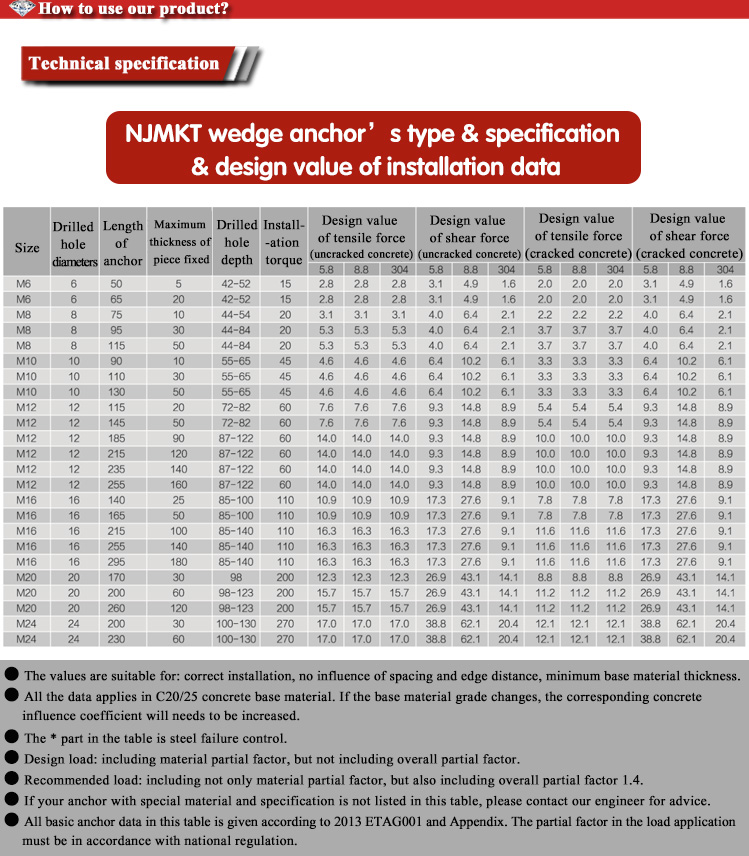

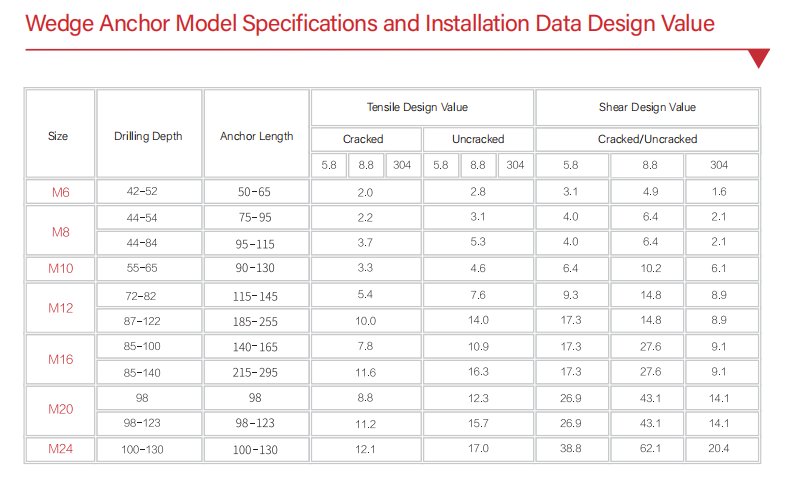

Technical Data
