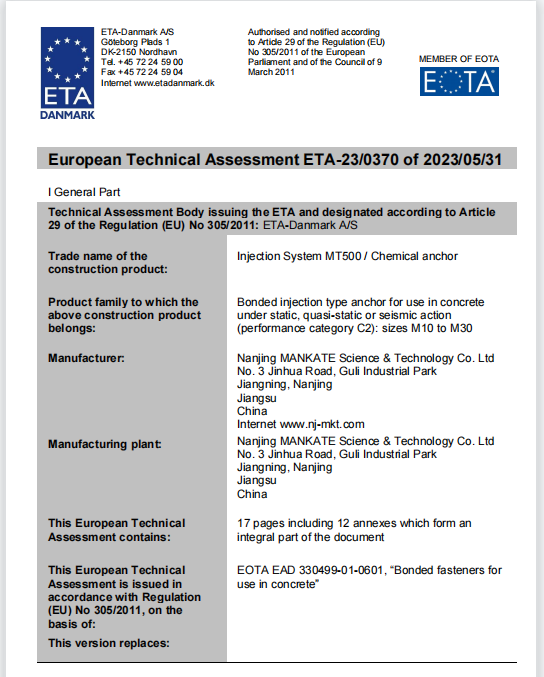

ETA approved NJMKT anchors

+86 025 8665 1110
Home >> Products >> Product by Type >> Chemical Anchor System >> Underwater Anchorage Adhesive

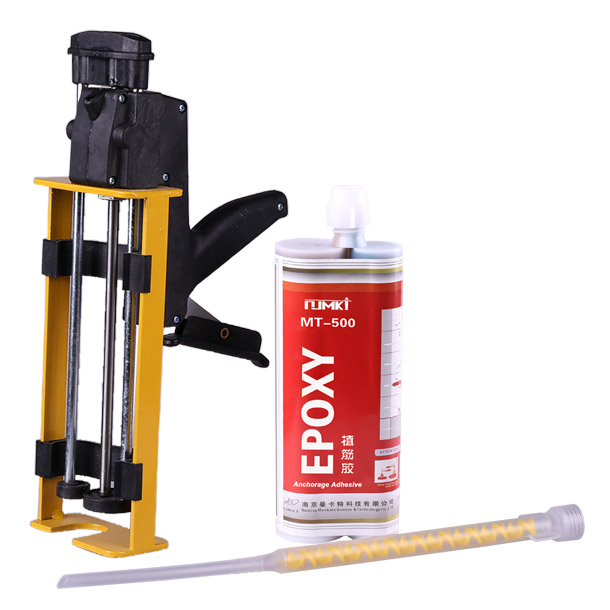

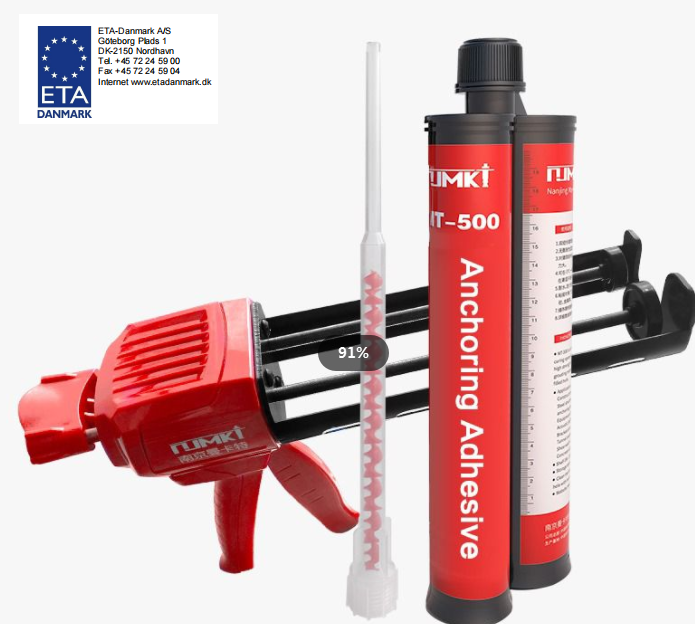

NJMKT MT-500 Anchorage Adhesive Ultimate-performance epoxy mortar for rebar connections and heavy anchoring

NJMKT MT-500 Anchorage Adhesive Ultimate-performance epoxy mortar for rebar connections and heavy anchoring

Ultimate-performance epoxy mortar for rebar connections and heavy anchoring

Non-toxic report & Safety appraisal report are available; the best performance in post-install rebar


Share Facebook Twitter LinkedIn Pinterest Google+ Addthis

    Features:

    ● Two-component anchoring adhesive, fast-cure, epoxy-based anchoring adhesive, nearly odorless, non-toxic, no drip, no sag, and easy clean up

    ● Quick load-bearing after cure, high initial bonding strength and anti-pulling capacity

    ● Strong anchorage bonding strength achieves the effect of embedded parts

    ● Higher strength than the concrete around it after cure

    ● Compared with other mechanical or chemical anchor, it has a larger load-bearing capacity

    ● There is almost no shrinkage during curing process

    ● No expansion stress, provide the best spacing and edge distance

    ● Good resistance to weather, high temperature, age, chemical corrosion, welding, seismic, flame, etc.

    ● Fast and easy dispensing by special double spiral mixing nozzle to ensure accurate mixing proportion

    ● When properly mixed, adhesive will be an even color to injection for use

    ● Anchorage adhesive can deal with steel bonding and rebar embeding in underwater condition to ensure underwater construction engineering quality


    In addition: Nanjing Mankate has got ISO quality system certification and our product is covered by Ping’an insurance company


    Standard: GB50367-2013, GB50728-2011

    NJMKT promises to meet the technical requirements of the following GB50367-2013 "Design code for concrete structure reinforcement" and GB50728-2011 "Technical code for safety identification of reinforcement materials for engineering structures".





    NJMKT MT-500 Anchorage Adhesive

    ● Suitable for anchor and rebar embedding in all construction base materials, such as cracked and uncracked concrete, granite, etc.

    ● It almost can be applied to any holes with different diameter and depth

    ● Wide working temperature range: -5℃~ 40℃, available in all environmental/weather working conditions, including dry concrete, water-saturated and water-filled holes, and underwater environment (choose NJMKT special underwater adhesive), long-term stable loading performance

    ● NJMKT adhesive specialized for low temperature can still keep a perfect performance in the temperature of -5℃, you can choose our special low temperature adhesive depending on your installation condition

    ● Suitable for horizontal, vertical and overhead applications

    ● Suitable for static and seismic loading conditions and heavy-load fixings and fastenings

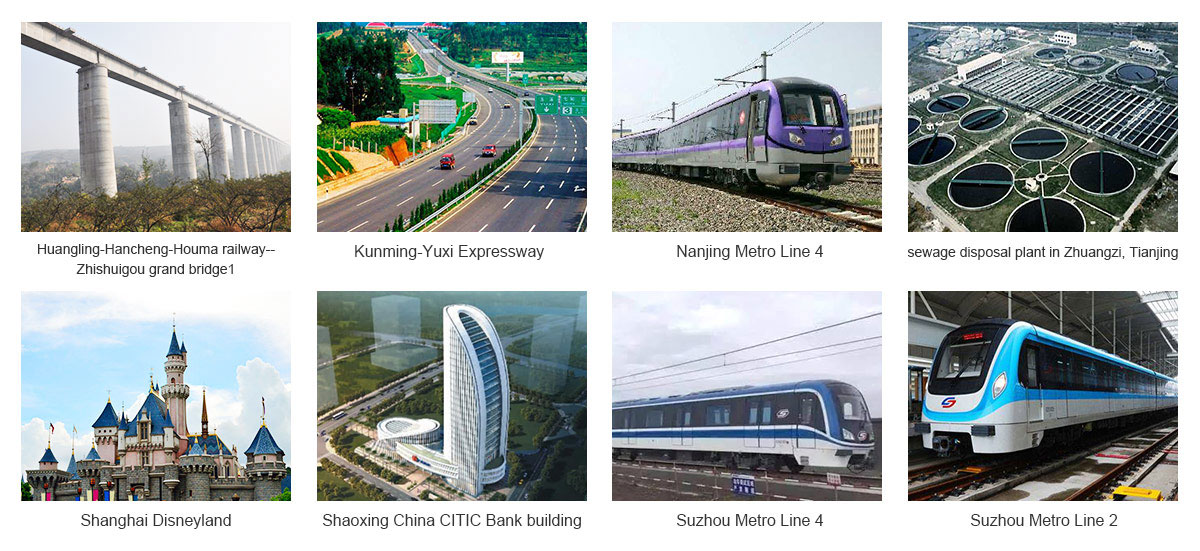

    ● Widely used for curtain wall, guard rail, sound barrier, bridge beam, equipment fixing, seismic strengthening, repairing and retrofitting and bracing of reinforced concrete buildings, rebar doweling, connection of post-installed rebars and anchors, etc.


    Operating environment:

    ● Dry condition

    ● Wet condition

    ● Underwater condition

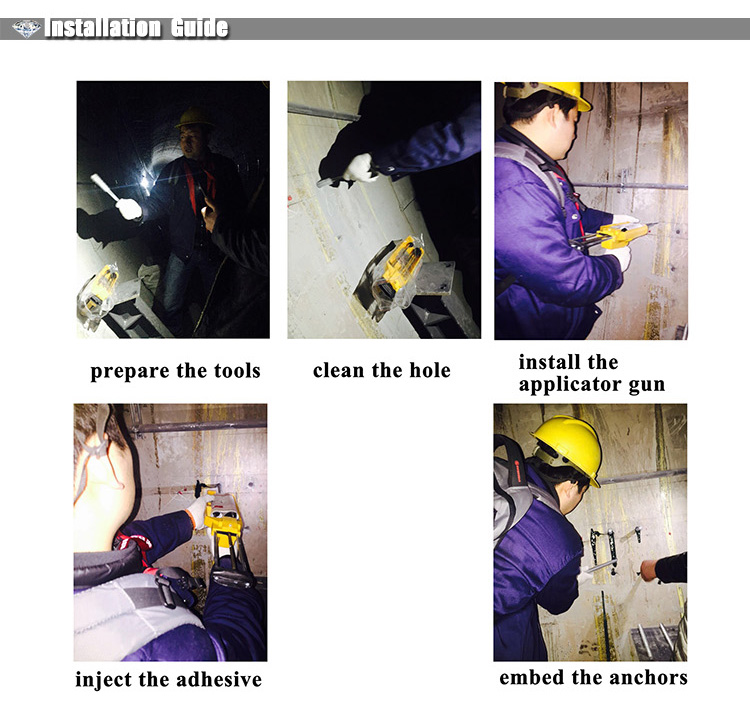

    Installation

    1.Drill the hole to proper depth and diameter per specifications using drill systems.

    2.Clean the hole using brush and compressed air for three times.

    3.Use specialized cartridge or nozzle, discard the first injections until an even color is achieved. Inject adhesive until up to 2/3 depth of drilled hole.

    4.Insert the rebar/anchor/bolt/rod slowly into the bottom of the hole clockwise.

    5.Do not knock or strike the steel element during cure time. Adhesive must be fully cured before applying any load or torque.

    6.Finish installation and continue the follow-up construction and apply the load.


    NJMKT MT-500 Anchorage Adhesive


    Packing:

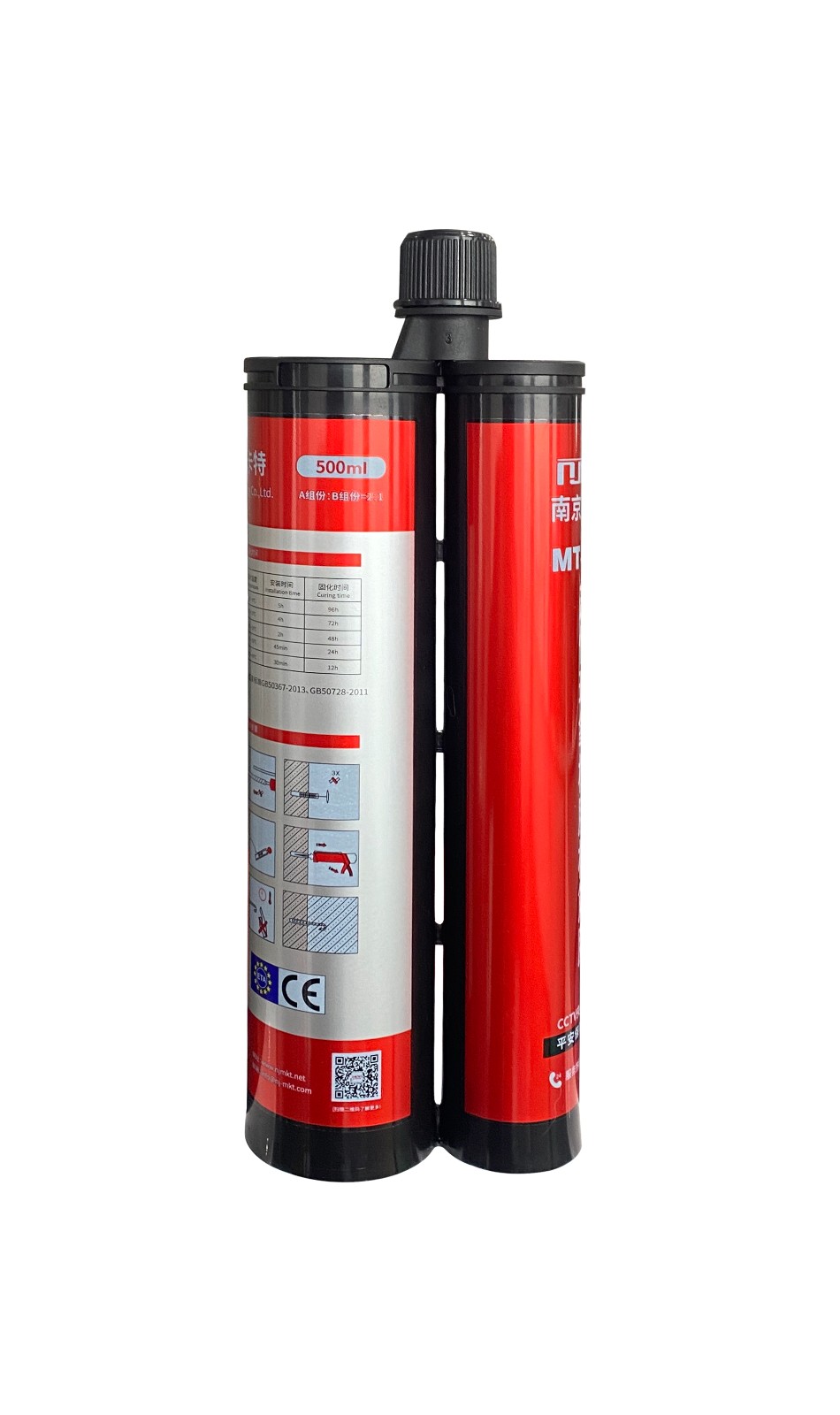

    ● Packing: 450ml cartridge (30 pieces/carton)


    Storage:

    ● Shelf life: At least 12 months from date of manufacture in unopened container when store in dry and well-ventilated place. Please store in ambient temperature from 5 ℃ to 40 ℃, away from open flame, heating devices

    ● Adhesive specialized for low temperature can be stored in ambient temperature from -5 ℃ to 40 ℃

    ● Handle with care, protect from rain, sunlight and place upward during loading and unloading transportation


    Caution:

    ● Mix the adhesive well according to its weight proportion strictly

    ● Construction crew should take steps of protective measures to keep it from eyes

    ● Remaining adhesive cannot be poured into original barrels

    ● Cartridge cap design is available for several times to use the total amount of adhesive, avoid wasting

    MT-500 Epoxy Anchoring Adhesives Technical Sheet

    Sample Name:MT - 500 Adhesive for post - installed rebar anchor
    Sample NO.HJ - 2009 - A - 122Report Date2009.09.07
    NO.Item NameTechnical SpecificationTest ResultSingle assessment
    Adhesive Grade AAdhesive Grade B
    1Adhesive
         Performance
    Splittingtensile strength, Mpa≥8.5≥7.014.5Grade A
    Bending strength, Mpa≥50≥4092.7Grade A
    Compressive strength, Mpa≥6084.3Grade A
    2Bonding
         Capability
    Steel-steel (steel sleeve method) nominal value of tensile and shear strength, Mpa≥16≥1322.0Grade A
    Bond strength of ribbed rebars and concrete under constraint drawing  condition, MpaC30≥11.0≥8.515.0Grade A
    Bond strength of ribbed rebars and concrete under constraint drawing  condition, MpaC60≥17.0≥14.021.6Grade A
    3Content of non - volatile (solid)%≥9999.4Grade A
    4Steel-steel (steel sleeve method) reducing rate of tensile and shear strength after damp - heataging, %≤10≤15Reduce 4.5Grade A
    5Steel-steel (steel sleeve method) reducing rate of tensile and shear strength after 50 times of freeze - thawcycles, %≤5Reduce 2.8Grade A
    Notedamp-heataging conditions: relative humidity 98%, temperature 50℃, 90 days
    freeze-thaw experiment conditions: -25℃ 4h→35℃ 4h as a cycle


    Cure Schedule
    Base material temperature  [°C]Installation time
         [minute]
    Gel time
    [minute]
    Cure time
      [day]
    -5°C ~ 0°C4090-1508
    0°C ~ 10°C2550-906
    10°C ~ 25°C1535-504
    25°C ~ 40°C615-352
    ≥ 40°C471


    Adhesive consumption reference

    Anchor rodDrilled hole diameter
    mm
    Drilled hole depth
    mm
    One cartridge available for hole numbers
    M81080100
    M10129062
    M121411037
    M161812520
    M20241708
    M24282105
    M30352802.4
Description

Features:

● Two-component anchoring adhesive, fast-cure, epoxy-based anchoring adhesive, nearly odorless, non-toxic, no drip, no sag, and easy clean up

● Quick load-bearing after cure, high initial bonding strength and anti-pulling capacity

● Strong anchorage bonding strength achieves the effect of embedded parts

● Higher strength than the concrete around it after cure

● Compared with other mechanical or chemical anchor, it has a larger load-bearing capacity

● There is almost no shrinkage during curing process

● No expansion stress, provide the best spacing and edge distance

● Good resistance to weather, high temperature, age, chemical corrosion, welding, seismic, flame, etc.

● Fast and easy dispensing by special double spiral mixing nozzle to ensure accurate mixing proportion

● When properly mixed, adhesive will be an even color to injection for use

● Anchorage adhesive can deal with steel bonding and rebar embeding in underwater condition to ensure underwater construction engineering quality


In addition: Nanjing Mankate has got ISO quality system certification and our product is covered by Ping’an insurance company


Standard: GB50367-2013, GB50728-2011

NJMKT promises to meet the technical requirements of the following GB50367-2013 "Design code for concrete structure reinforcement" and GB50728-2011 "Technical code for safety identification of reinforcement materials for engineering structures".





NJMKT MT-500 Anchorage Adhesive

Applications

● Suitable for anchor and rebar embedding in all construction base materials, such as cracked and uncracked concrete, granite, etc.

● It almost can be applied to any holes with different diameter and depth

● Wide working temperature range: -5℃~ 40℃, available in all environmental/weather working conditions, including dry concrete, water-saturated and water-filled holes, and underwater environment (choose NJMKT special underwater adhesive), long-term stable loading performance

● NJMKT adhesive specialized for low temperature can still keep a perfect performance in the temperature of -5℃, you can choose our special low temperature adhesive depending on your installation condition

● Suitable for horizontal, vertical and overhead applications

● Suitable for static and seismic loading conditions and heavy-load fixings and fastenings

● Widely used for curtain wall, guard rail, sound barrier, bridge beam, equipment fixing, seismic strengthening, repairing and retrofitting and bracing of reinforced concrete buildings, rebar doweling, connection of post-installed rebars and anchors, etc.


Functionality

Operating environment:

● Dry condition

● Wet condition

● Underwater condition


Installation

1.Drill the hole to proper depth and diameter per specifications using drill systems.

2.Clean the hole using brush and compressed air for three times.

3.Use specialized cartridge or nozzle, discard the first injections until an even color is achieved. Inject adhesive until up to 2/3 depth of drilled hole.

4.Insert the rebar/anchor/bolt/rod slowly into the bottom of the hole clockwise.

5.Do not knock or strike the steel element during cure time. Adhesive must be fully cured before applying any load or torque.

6.Finish installation and continue the follow-up construction and apply the load.


NJMKT MT-500 Anchorage Adhesive


Packing:

● Packing: 450ml cartridge (30 pieces/carton)


Storage:

● Shelf life: At least 12 months from date of manufacture in unopened container when store in dry and well-ventilated place. Please store in ambient temperature from 5 ℃ to 40 ℃, away from open flame, heating devices

● Adhesive specialized for low temperature can be stored in ambient temperature from -5 ℃ to 40 ℃

● Handle with care, protect from rain, sunlight and place upward during loading and unloading transportation


Caution:

● Mix the adhesive well according to its weight proportion strictly

● Construction crew should take steps of protective measures to keep it from eyes

● Remaining adhesive cannot be poured into original barrels

● Cartridge cap design is available for several times to use the total amount of adhesive, avoid wasting

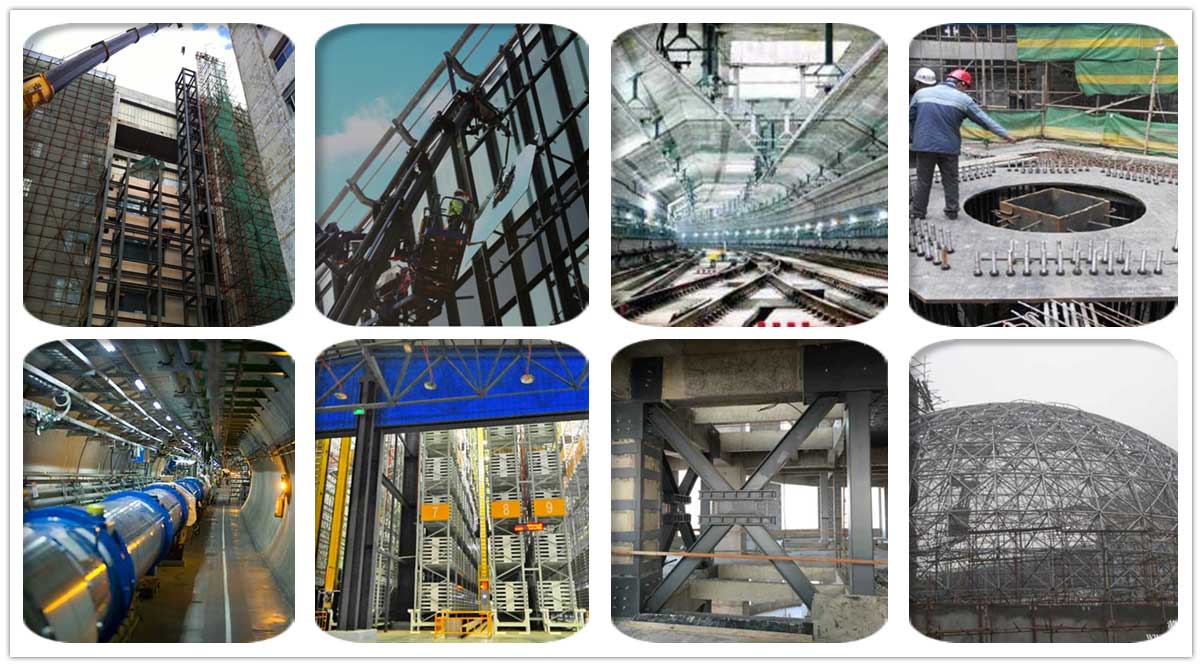

Project

Technical Data

MT-500 Epoxy Anchoring Adhesives Technical Sheet

Sample Name:MT - 500 Adhesive for post - installed rebar anchor
Sample NO.HJ - 2009 - A - 122Report Date2009.09.07
NO.Item NameTechnical SpecificationTest ResultSingle assessment
Adhesive Grade AAdhesive Grade B
1Adhesive
     Performance
Splittingtensile strength, Mpa≥8.5≥7.014.5Grade A
Bending strength, Mpa≥50≥4092.7Grade A
Compressive strength, Mpa≥6084.3Grade A
2Bonding
     Capability
Steel-steel (steel sleeve method) nominal value of tensile and shear strength, Mpa≥16≥1322.0Grade A
Bond strength of ribbed rebars and concrete under constraint drawing  condition, MpaC30≥11.0≥8.515.0Grade A
Bond strength of ribbed rebars and concrete under constraint drawing  condition, MpaC60≥17.0≥14.021.6Grade A
3Content of non - volatile (solid)%≥9999.4Grade A
4Steel-steel (steel sleeve method) reducing rate of tensile and shear strength after damp - heataging, %≤10≤15Reduce 4.5Grade A
5Steel-steel (steel sleeve method) reducing rate of tensile and shear strength after 50 times of freeze - thawcycles, %≤5Reduce 2.8Grade A
Notedamp-heataging conditions: relative humidity 98%, temperature 50℃, 90 days
freeze-thaw experiment conditions: -25℃ 4h→35℃ 4h as a cycle


Cure Schedule
Base material temperature  [°C]Installation time
     [minute]
Gel time
[minute]
Cure time
  [day]
-5°C ~ 0°C4090-1508
0°C ~ 10°C2550-906
10°C ~ 25°C1535-504
25°C ~ 40°C615-352
≥ 40°C471


Adhesive consumption reference

Anchor rodDrilled hole diameter
mm
Drilled hole depth
mm
One cartridge available for hole numbers
M81080100
M10129062
M121411037
M161812520
M20241708
M24282105
M30352802.4
