NJMKT Steel Bonding Adhesive (Dry process)  (MKT-GSS/P)

NJMKT Steel Bonding Adhesive (Dry process) (MKT-GSS/P)

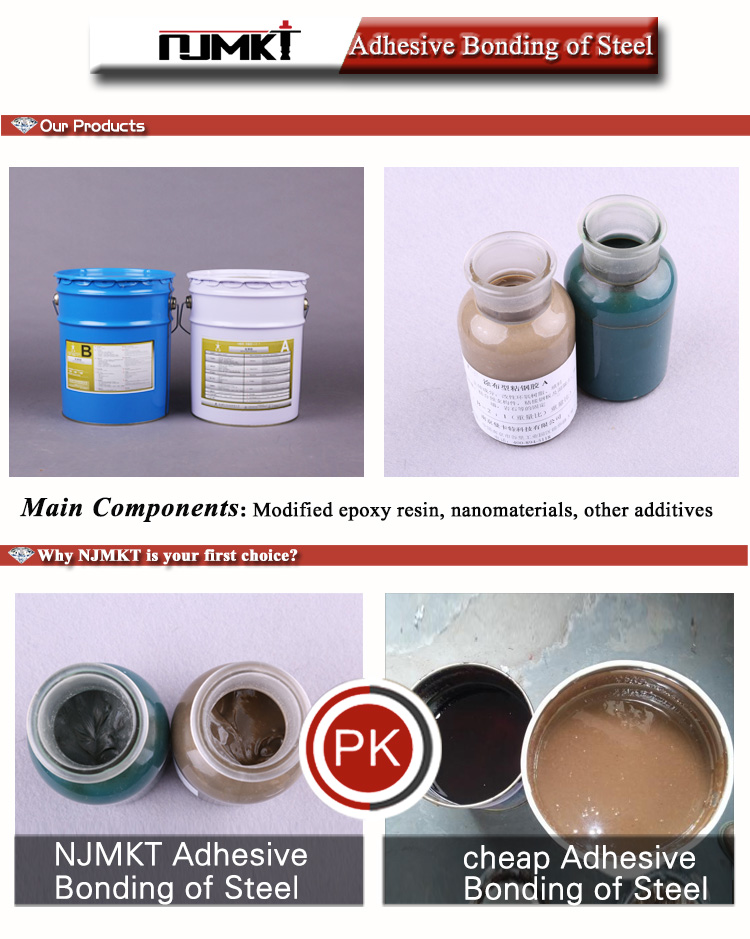

Main Components: Modified epoxy resin, nanomaterials, other additives

Component A: Component B = 2:1


Share Facebook Twitter LinkedIn Pinterest Google+ Addthis

    Features:

    *Excellent thixotropy, non-drip for horizontal, vertical and overhead applications

    *Very good resistance to age, chemical corrosion and water

    *After cure time low shrinkage, wide range of mixing proportion, reasonable operable time

    *Three types of cure condition: normal temperature, low temperature, wet environment

    *Excellent properties of bonding strength, toughness, peeling strength and impact resistance

    *Fast and easy stirring ensures accurate mixing proportion, when properly mixed, adhesive will be an even color for use

    *Dry process: Mixed adhesive should be used up within 20~60 minutes (depending on specific ambient temperature), the density is about 1.60~1.65 g/cm3 (cured ), gel time is about 2~6 hours

    *Wet process: Mixed adhesive should be used up within 20~50 minutes (depending on specific ambient temperature), the density is about 1.15~1.20 g/cm3 (cured), gel time is about 2~6 hours








    * Concrete structure, masonry structure reinforced with external steel encased, grouting for welded steel plate

    * Bond the steel on the surface of beam, column to improve load capacity

    * Steel liner plate of bridge supporting beam and foundation bed fixings

    * Base and support fixtures for machinery and equipment

    * Excellent adhesive strength on granite and tile for curtain wall installation

    * Bonding, sealing, coating, protection, reinforcement for electronic components, instrument parts

    * Repair and bond various materials of metal, ceramic, wood, and some plastic and glass


    Operating environment:

    *Dry condition

    *Wet condition

    *Underwater condition



    Installation:

    1. Surface of concrete and steel plate must be clean, and polish treatment if rough surface

    2. Mix adhesive according to mixing proportion

    3. Bond the steel plate

    4. Press to fix the steel plate

    5. Cure treatment

    6. Protective treatment

    7. Sealing check



    Caution:

    *Mix the adhesive well according to its weight proportion strictly

    *Construction crew should take steps of protective measures to keep it from eyes

    *Remaining adhesive cannot be poured into original barrels

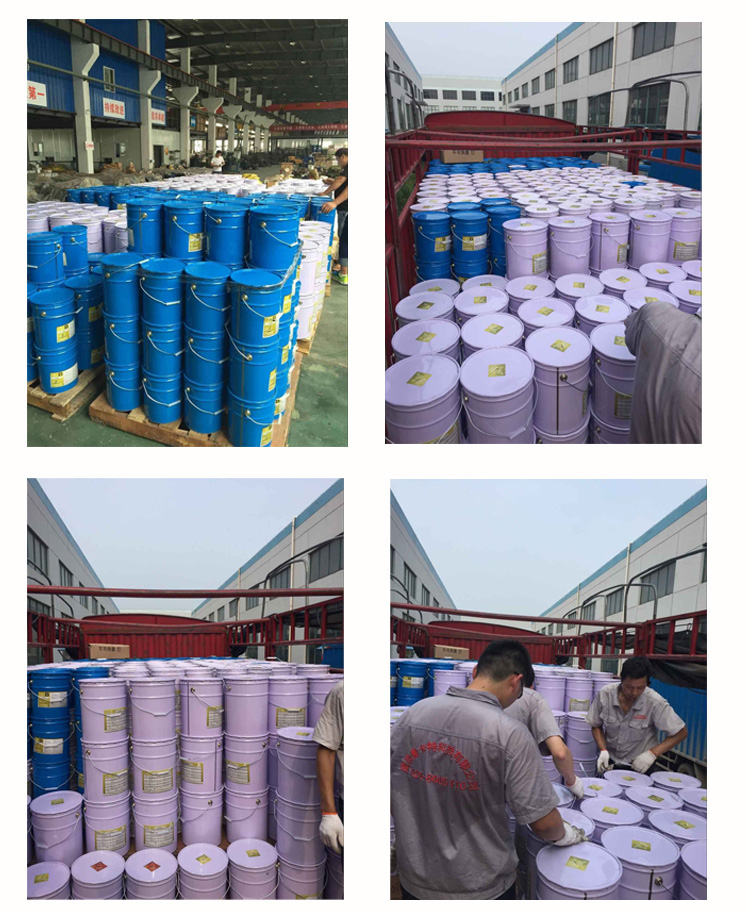

    Packing:

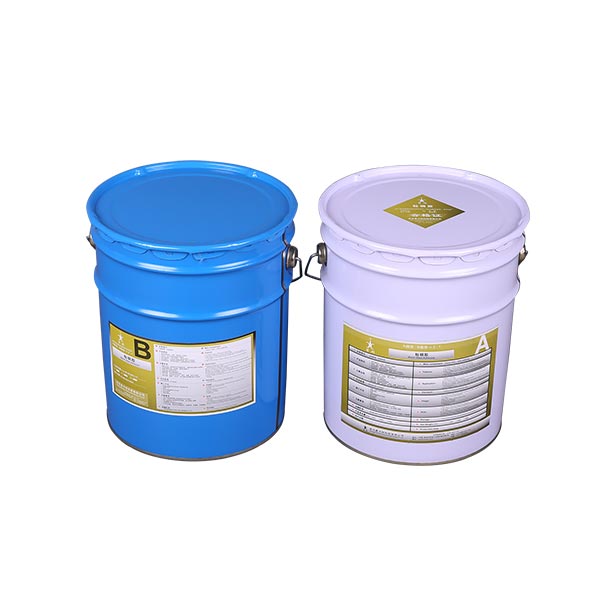

    *Packing: Dry process: two kinds of package, 45kg (A+B two barrels)/pair; 10kg (A+B two barrels)/pair.

    Wet process: two kinds of package, 30kg (A+B two barrels)/pair; 15kg (A+B two barrels)/pair.


    Storage:

    *Shelf life: At least 12 months from date of manufacture in unopened container when store in dry and well-ventilated place. Please store in ambient temperature from 5 ℃ to 40 ℃, away from open flame, heating devices

    *Adhesive specialized for low temperature can be stored in ambient temperature from -15 ℃ to 40 ℃

    *Handle with care, protect from rain, sunlight and place upward during loading and unloading transportation


    Standard: GB50367-2013, GB50728-2011

    NJMKT promises to meet the technical requirements of the following GB50367-2013 "Design code for concrete structure reinforcement" and GB50728-2011 "Technical code for safety identification of reinforcement materials for engineering structures".


     Name NJMKT Steel Bonding Adhesive (Dry process) MKT-GSS/P
    NO.Item NameTechnical SpecificationTest ResultSingle item assessment
    Adhesive Grade AAdhesive Grade B
    1Adhesive
    Performance
    Tensile strength, MPa≥ 30≥ 2556.2Grade A
    Tensile modulus of elasticity, MPa≥ 3.2 × 103≥ 3.6 × 1033.6 × 103Grade A
    Elongation (%)≥ 1.2≥ 1.01.6Grade A
    Bending strength, Mpa≥ 45≥ 3572.3 and without brittle failure  Grade A
    Without brittle failure
    Compressive strength, Mpa≥ 6587.7Grade A
    2Bonding
    Capability
    Steel-steel nominal value of tensile and shear strength, Mpa≥ 15≥ 1222.6Grade A
     Steel-steel T impact stripping length, mm≥ 25≥ 4020.5Grade A
    Steel-steel bonding tensile strength, Mpa≥ 33≥ 2735.1Grade A
    Steel-concrete C45 positive bonding tensile strength, Mpa≥ 2.5, and concrete cohesive failure 3.5 and concrete cohesive failureGrade A
    3Heat distortion temperature≥ 65≥ 60Grade A
    4Damp-heat aging resistance performance (7D) %Steel-steel bonding shear strength decreased ≥ 86.6Grade A
    5Content of non - volatile (solid) %≥ 9999.4Grade A
Description

Features:

*Excellent thixotropy, non-drip for horizontal, vertical and overhead applications

*Very good resistance to age, chemical corrosion and water

*After cure time low shrinkage, wide range of mixing proportion, reasonable operable time

*Three types of cure condition: normal temperature, low temperature, wet environment

*Excellent properties of bonding strength, toughness, peeling strength and impact resistance

*Fast and easy stirring ensures accurate mixing proportion, when properly mixed, adhesive will be an even color for use

*Dry process: Mixed adhesive should be used up within 20~60 minutes (depending on specific ambient temperature), the density is about 1.60~1.65 g/cm3 (cured ), gel time is about 2~6 hours

*Wet process: Mixed adhesive should be used up within 20~50 minutes (depending on specific ambient temperature), the density is about 1.15~1.20 g/cm3 (cured), gel time is about 2~6 hours








Applications

* Concrete structure, masonry structure reinforced with external steel encased, grouting for welded steel plate

* Bond the steel on the surface of beam, column to improve load capacity

* Steel liner plate of bridge supporting beam and foundation bed fixings

* Base and support fixtures for machinery and equipment

* Excellent adhesive strength on granite and tile for curtain wall installation

* Bonding, sealing, coating, protection, reinforcement for electronic components, instrument parts

* Repair and bond various materials of metal, ceramic, wood, and some plastic and glass


Functionality

Operating environment:

*Dry condition

*Wet condition

*Underwater condition



Installation:

1. Surface of concrete and steel plate must be clean, and polish treatment if rough surface

2. Mix adhesive according to mixing proportion

3. Bond the steel plate

4. Press to fix the steel plate

5. Cure treatment

6. Protective treatment

7. Sealing check



Caution:

*Mix the adhesive well according to its weight proportion strictly

*Construction crew should take steps of protective measures to keep it from eyes

*Remaining adhesive cannot be poured into original barrels


Packing:

*Packing: Dry process: two kinds of package, 45kg (A+B two barrels)/pair; 10kg (A+B two barrels)/pair.

Wet process: two kinds of package, 30kg (A+B two barrels)/pair; 15kg (A+B two barrels)/pair.


Storage:

*Shelf life: At least 12 months from date of manufacture in unopened container when store in dry and well-ventilated place. Please store in ambient temperature from 5 ℃ to 40 ℃, away from open flame, heating devices

*Adhesive specialized for low temperature can be stored in ambient temperature from -15 ℃ to 40 ℃

*Handle with care, protect from rain, sunlight and place upward during loading and unloading transportation

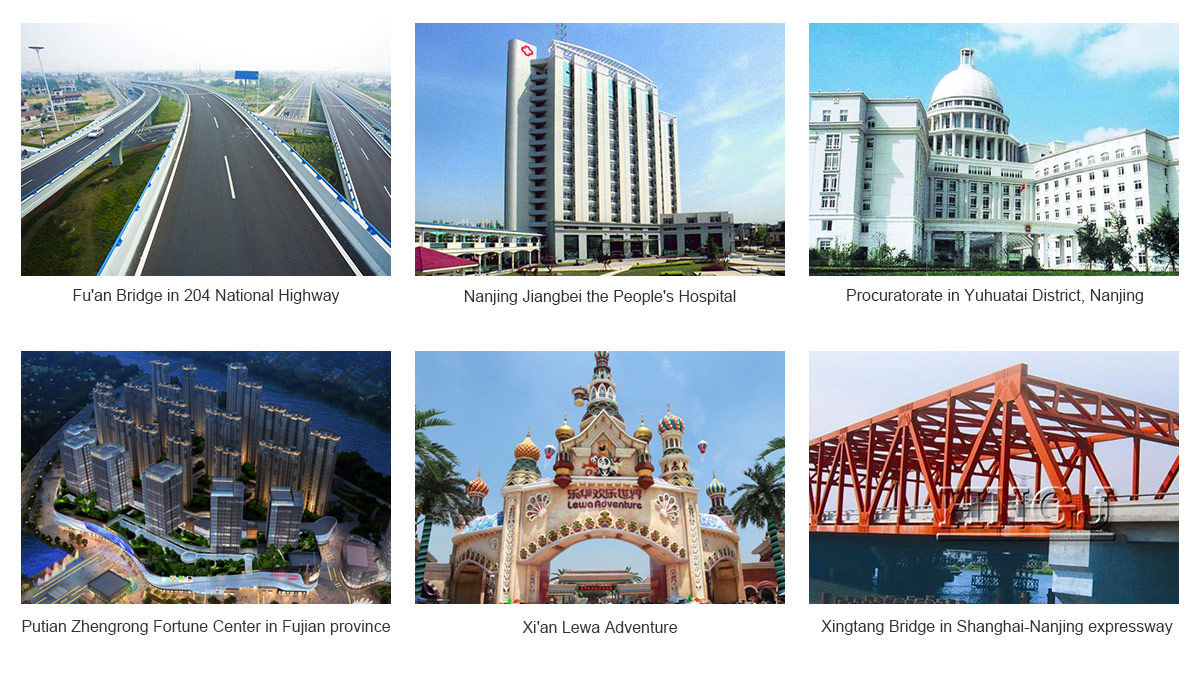

Project

Technical Data

Standard: GB50367-2013, GB50728-2011

NJMKT promises to meet the technical requirements of the following GB50367-2013 "Design code for concrete structure reinforcement" and GB50728-2011 "Technical code for safety identification of reinforcement materials for engineering structures".


 Name NJMKT Steel Bonding Adhesive (Dry process) MKT-GSS/P
NO.Item NameTechnical SpecificationTest ResultSingle item assessment
Adhesive Grade AAdhesive Grade B
1Adhesive
Performance
Tensile strength, MPa≥ 30≥ 2556.2Grade A
Tensile modulus of elasticity, MPa≥ 3.2 × 103≥ 3.6 × 1033.6 × 103Grade A
Elongation (%)≥ 1.2≥ 1.01.6Grade A
Bending strength, Mpa≥ 45≥ 3572.3 and without brittle failure  Grade A
Without brittle failure
Compressive strength, Mpa≥ 6587.7Grade A
2Bonding
Capability
Steel-steel nominal value of tensile and shear strength, Mpa≥ 15≥ 1222.6Grade A
 Steel-steel T impact stripping length, mm≥ 25≥ 4020.5Grade A
Steel-steel bonding tensile strength, Mpa≥ 33≥ 2735.1Grade A
Steel-concrete C45 positive bonding tensile strength, Mpa≥ 2.5, and concrete cohesive failure 3.5 and concrete cohesive failureGrade A
3Heat distortion temperature≥ 65≥ 60Grade A
4Damp-heat aging resistance performance (7D) %Steel-steel bonding shear strength decreased ≥ 86.6Grade A
5Content of non - volatile (solid) %≥ 9999.4Grade A
