Resin Capsule

Resin Capsule

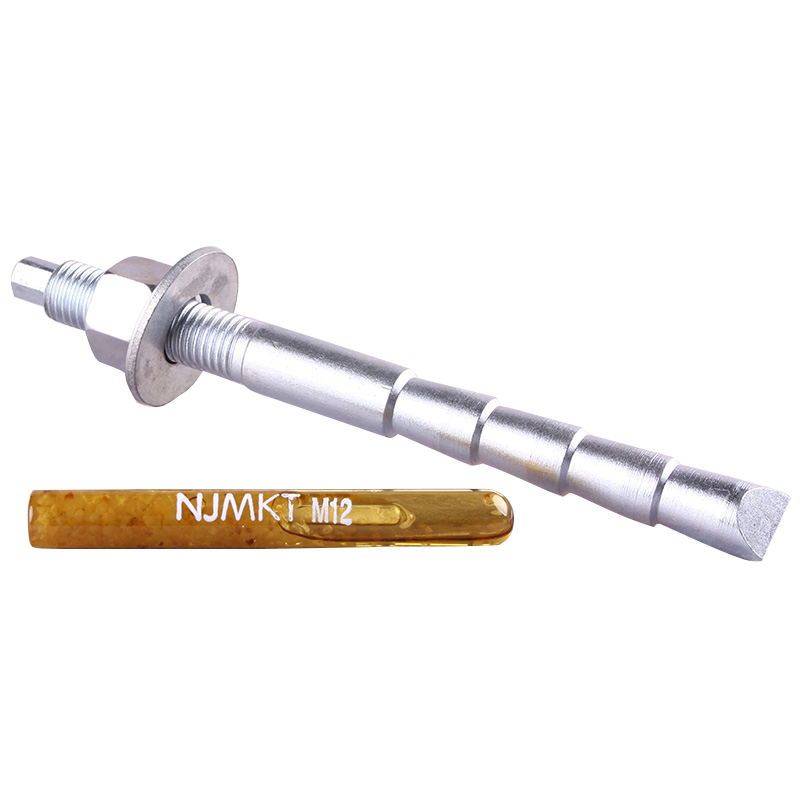

Curing in a short time and perfectly matched with conical adhesive anchor

Share Facebook Twitter LinkedIn Pinterest Google+ Addthis

    Material:polyurethane acrylic + quartz sand


    Advantages:

    Fast cure, high construction efficiency

    Suitable for various anchorage fasteners, small spacing/edge distance

    Excellent property of load-bearing, anti-seismic and anti-welding

    Wide working temperature range, even -10℃

    No phenylethene, non-toxic

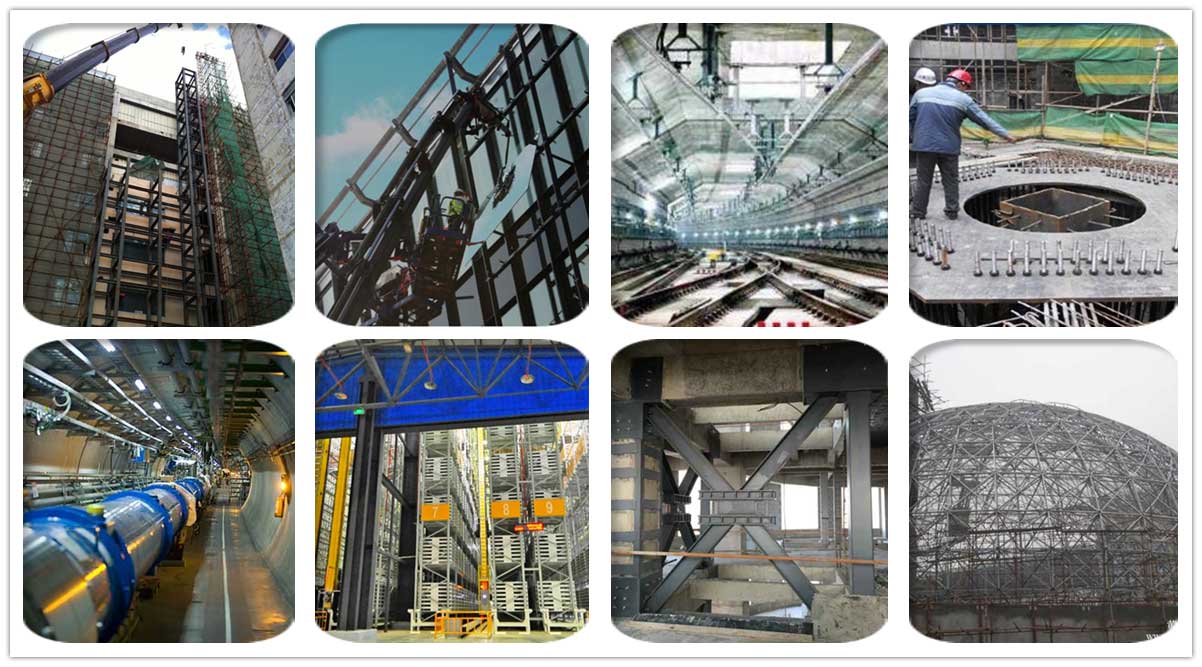

    Applications:

    Curtain wall

    Steelwork constructions

    Equipment fixing

    Pipeline, bracket

    Baffle plate, hanging plate, acoustical plate

    Installation:


    Drill the hole to proper depth and diameter per specifications using ordinary impact drill; the verticality, hole diameter of embedded plate, maximum spacings, etc. are in accordance with JGJ/145-2013.

    Blow the hole clean using compressed air.

    Put the resin capsule into the drilled hole.

    Before installation, firstly break the glass tube with the anchor, then use the setting tool to drive the anchor into the drilled hole until the mark of the anchor is tight against the surface of concrete base material.

    After the cure, place the fixture.




    Storage:

    Please store in dry and well-ventilated place, away from open flame, heating devices, dust, rain, light and UV.



    Match NJMKT Adhesive Anchor

    A. Installation data and force value----8.8 uncracked concrete



    TypeLengthEffective embedment depthTensile standard/
    design value
    Shear standard/
    design value
    Drill bit dia.Max. fixture thicknessInstallation torqueInfluence coefficient k for hef to Vrd, cpConcrete cone failureRecommended tensile/shearConcrete splitting failure
    critical edge distancecritical spacingMin. spacingMin. edge distanceCritical spacingCritical edge distance
    M81108029.3/19.511.7/9.31016122.01202408.7/4.04848240120
    M101309041.8/23.218.5/15.51222202.013527016.8/11.16060270135
    M1216011056.5/31.426.9/22.51424.5402.016533022.4/16.07272330165
    M1619012568.5/38.050.2/41.81831602.019037527.1/29.89696375190
    M20260170108.6/60.378.4/65.32557.51002.025551043.0/46.6120120510255
    M24300210149.1/82.8112.9/94.128531602.031563059.1/67.2144144630315
    M27350250193.6/107.5146.8/122.432632002.037575076.8/102.0160160750375
    M30380280229.5/127.5179.5/149.635592402.042084091.1/106.9180180840420


    B. Installation data and force value----8.8 cracked concrete

    TypeLengthEffective embedment depthTensile standard/
         design value
    Shear standard/
         design value
    Drill bit dia.Max. fixture thicknessInstallation torqueInfluence coefficient k for hef to Vrd, cpConcrete cone failureRecommended tensile/shearConcrete splitting failure
    critical edge distancecritical spacingMin. spacingMin. edge distanceCritical spacingCritical edge distance
    M81108025.1/13.911.7/9.31016122.01202409.9/6.64848240120
    M101309029.8/19.418.5/15.51222202.013527013.8/11.16060270135
    M1216011040.4/22.426.9/22.51424.5402.016533016.0/16.07272330165
    M1619012548.9/27.250.2/41.81831602.019037519.4/29.89696375190
    M2026017077.5/43.178.4/65.32557.51002.025551030.8/46.6120120510255
    M24300210106.5/59.1112.9/94.128531602.031563042.2/67.2144144630315
    M27350250138.3/76.8146.8/122.432632002.037575054.8/102.0160160750375
    M30380280163.9/91.1179.5/149.635592402.042084065.1/106.9180180840420
Description

Material:polyurethane acrylic + quartz sand


Advantages:

Fast cure, high construction efficiency

Suitable for various anchorage fasteners, small spacing/edge distance

Excellent property of load-bearing, anti-seismic and anti-welding

Wide working temperature range, even -10℃

No phenylethene, non-toxic


Applications:

Curtain wall

Steelwork constructions

Equipment fixing

Pipeline, bracket

Baffle plate, hanging plate, acoustical plate

Applications

Installation:


Drill the hole to proper depth and diameter per specifications using ordinary impact drill; the verticality, hole diameter of embedded plate, maximum spacings, etc. are in accordance with JGJ/145-2013.

Blow the hole clean using compressed air.

Put the resin capsule into the drilled hole.

Before installation, firstly break the glass tube with the anchor, then use the setting tool to drive the anchor into the drilled hole until the mark of the anchor is tight against the surface of concrete base material.

After the cure, place the fixture.




Functionality

Storage:

Please store in dry and well-ventilated place, away from open flame, heating devices, dust, rain, light and UV.


Project


Technical Data

Match NJMKT Adhesive Anchor

A. Installation data and force value----8.8 uncracked concrete



TypeLengthEffective embedment depthTensile standard/
design value
Shear standard/
design value
Drill bit dia.Max. fixture thicknessInstallation torqueInfluence coefficient k for hef to Vrd, cpConcrete cone failureRecommended tensile/shearConcrete splitting failure
critical edge distancecritical spacingMin. spacingMin. edge distanceCritical spacingCritical edge distance
M81108029.3/19.511.7/9.31016122.01202408.7/4.04848240120
M101309041.8/23.218.5/15.51222202.013527016.8/11.16060270135
M1216011056.5/31.426.9/22.51424.5402.016533022.4/16.07272330165
M1619012568.5/38.050.2/41.81831602.019037527.1/29.89696375190
M20260170108.6/60.378.4/65.32557.51002.025551043.0/46.6120120510255
M24300210149.1/82.8112.9/94.128531602.031563059.1/67.2144144630315
M27350250193.6/107.5146.8/122.432632002.037575076.8/102.0160160750375
M30380280229.5/127.5179.5/149.635592402.042084091.1/106.9180180840420


B. Installation data and force value----8.8 cracked concrete

TypeLengthEffective embedment depthTensile standard/
     design value
Shear standard/
     design value
Drill bit dia.Max. fixture thicknessInstallation torqueInfluence coefficient k for hef to Vrd, cpConcrete cone failureRecommended tensile/shearConcrete splitting failure
critical edge distancecritical spacingMin. spacingMin. edge distanceCritical spacingCritical edge distance
M81108025.1/13.911.7/9.31016122.01202409.9/6.64848240120
M101309029.8/19.418.5/15.51222202.013527013.8/11.16060270135
M1216011040.4/22.426.9/22.51424.5402.016533016.0/16.07272330165
M1619012548.9/27.250.2/41.81831602.019037519.4/29.89696375190
M2026017077.5/43.178.4/65.32557.51002.025551030.8/46.6120120510255
M24300210106.5/59.1112.9/94.128531602.031563042.2/67.2144144630315
M27350250138.3/76.8146.8/122.432632002.037575054.8/102.0160160750375
M30380280163.9/91.1179.5/149.635592402.042084065.1/106.9180180840420
