NJMKT Leveling Adhesive  (MKT-LG)

NJMKT Leveling Adhesive (MKT-LG)

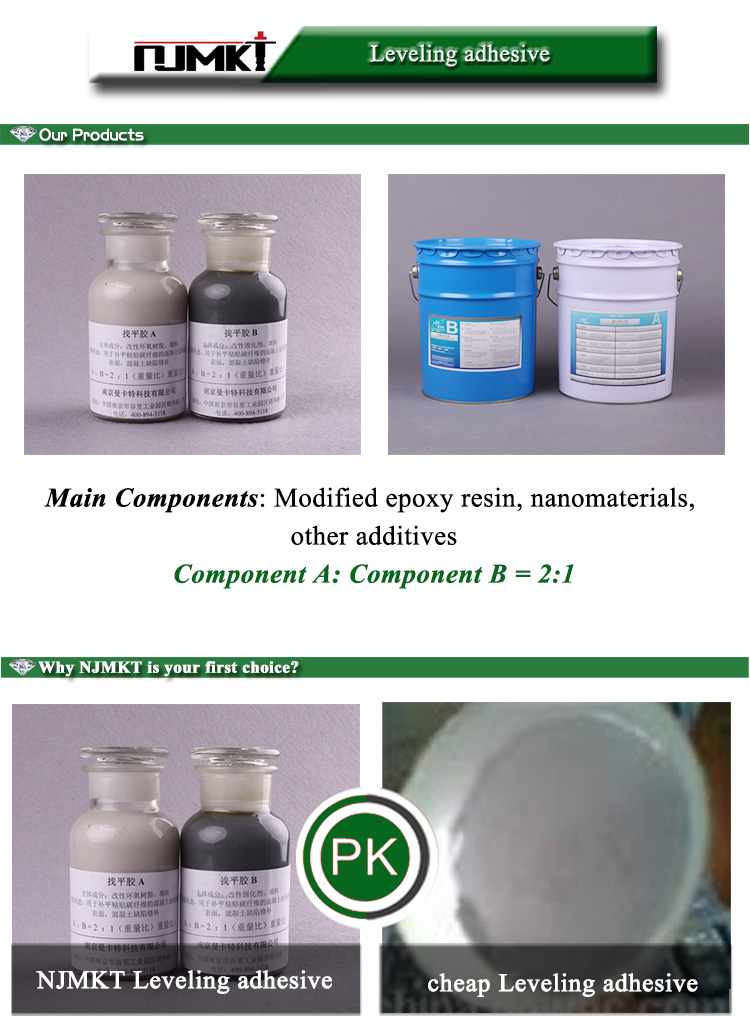

Main Components: Modified epoxy resin, nanomaterials, other additives

Component A: Component B = 2:1


Share Facebook Twitter LinkedIn Pinterest Google+ Addthis

    Features:

    * Excellent thixotropy, non-drip for horizontal, vertical and overhead applications

    * Very good resistance to age, chemical corrosion and water

    * After cure time low shrinkage, wide range of mixing proportion, long time operation

    * Three types of cure condition: normal temperature, low temperature, wet environment

    * Excellent properties of bonding strength, toughness, peeling strength and impact resistance

    * Moderate viscosity and good flowability , easy for paste

    * Fast and easy stirring ensures accurate mixing proportion 2:1, when properly mixed, adhesive will be an even color for use

    * Mixed adhesive should be used up within 10~60 minutes (depending on specific ambient temperature), the density is about 1.75~1.80 g/cm3 (cured), gel time is about 1.5~6 hours


    *Suitable for rough concrete surface with spalling, corrosion, honeycomb

    * Concrete damage caused by external force, restore and repair the damaged edge of concrete structure

    * Repair the concrete surface with porous water seepage by pasting reinforcement

    * Repair, fill the cracks and holes in the concrete structure

    * Concrete replacement reinforcement

    * Concrete surface repair and leveling in steel and carbon fiber bonding reinforcement

    * Structural cracks grouting

    * waterproof and leak-stopping engineering



    Operating environment:

    * Dry condition

    * Wet condition

    * Underwater condition



    Caution:

    * Mix the adhesive well according to its weight proportion strictly

    * Construction crew should take steps of protective measures to keep it from eyes

    * Remaining adhesive cannot be poured into original barrels



    Packing:

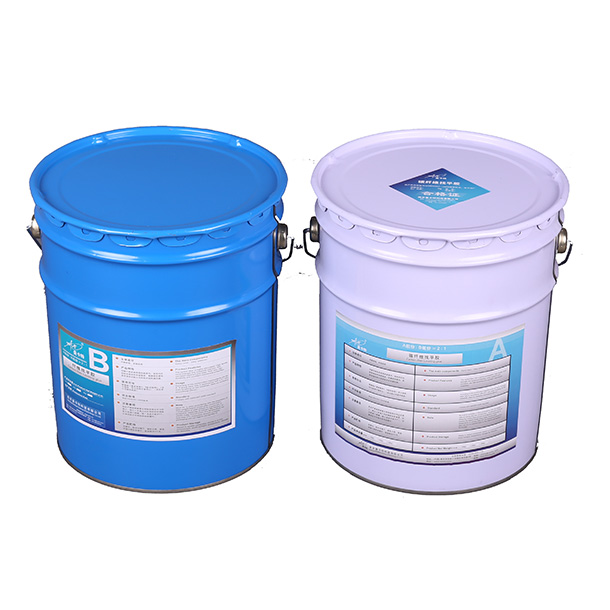

    * Two kinds of package, 45kg (A+B two barrels)/pair; 10kg (A+B two barrels)/pair


    Storage:

    * Shelf life: At least 12 months from date of manufacture in unopened container when store in dry and well-ventilated place. Please store in ambient temperature from 5 ℃ to 40 ℃, away from open flame, heating devices

    * Adhesive specialized for low temperature can be stored in ambient temperature from -5 ℃ to 40 ℃

    * Handle with care, protect from rain, sunlight and place upward during loading and unloading transportation



    Standard: GB50367-2013, GB50728-2011

    NJMKT promises to meet the technical requirements of the following GB50367-2013 "Design code for concrete structure reinforcement" and GB50728-2011 "Technical code for safety identification of reinforcement materials for engineering structures".


    NO.Item NameStandard Requirement
       (Adhesive Grade A)
    Test ResultSingle item assessment
    1Tensile strength (MPa)≥3839Qualified
    2Tensile modulus of elasticity (MPa)≥24003221Qualified
    3Elongation(%)≥1.51.53Qualified
    4Bending strength (MPa)≥50, and without brittle failure53, and without brittle failureQualified
    5Compressive strength (MPa)≥7086Qualified
Description

Features:

* Excellent thixotropy, non-drip for horizontal, vertical and overhead applications

* Very good resistance to age, chemical corrosion and water

* After cure time low shrinkage, wide range of mixing proportion, long time operation

* Three types of cure condition: normal temperature, low temperature, wet environment

* Excellent properties of bonding strength, toughness, peeling strength and impact resistance

* Moderate viscosity and good flowability , easy for paste

* Fast and easy stirring ensures accurate mixing proportion 2:1, when properly mixed, adhesive will be an even color for use

* Mixed adhesive should be used up within 10~60 minutes (depending on specific ambient temperature), the density is about 1.75~1.80 g/cm3 (cured), gel time is about 1.5~6 hours


Applications

*Suitable for rough concrete surface with spalling, corrosion, honeycomb

* Concrete damage caused by external force, restore and repair the damaged edge of concrete structure

* Repair the concrete surface with porous water seepage by pasting reinforcement

* Repair, fill the cracks and holes in the concrete structure

* Concrete replacement reinforcement

* Concrete surface repair and leveling in steel and carbon fiber bonding reinforcement

* Structural cracks grouting

* waterproof and leak-stopping engineering



Functionality

Operating environment:

* Dry condition

* Wet condition

* Underwater condition



Caution:

* Mix the adhesive well according to its weight proportion strictly

* Construction crew should take steps of protective measures to keep it from eyes

* Remaining adhesive cannot be poured into original barrels



Packing:

* Two kinds of package, 45kg (A+B two barrels)/pair; 10kg (A+B two barrels)/pair


Storage:

* Shelf life: At least 12 months from date of manufacture in unopened container when store in dry and well-ventilated place. Please store in ambient temperature from 5 ℃ to 40 ℃, away from open flame, heating devices

* Adhesive specialized for low temperature can be stored in ambient temperature from -5 ℃ to 40 ℃

* Handle with care, protect from rain, sunlight and place upward during loading and unloading transportation

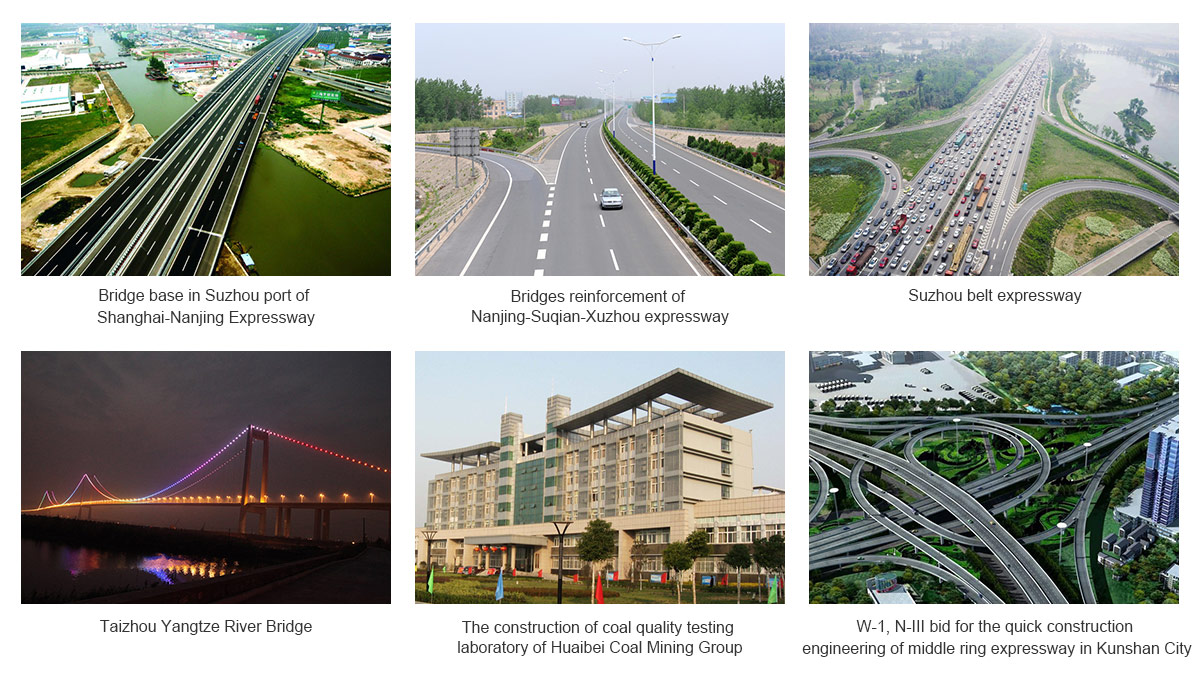

Project

Technical Data


Standard: GB50367-2013, GB50728-2011

NJMKT promises to meet the technical requirements of the following GB50367-2013 "Design code for concrete structure reinforcement" and GB50728-2011 "Technical code for safety identification of reinforcement materials for engineering structures".


NO.Item NameStandard Requirement
   (Adhesive Grade A)
Test ResultSingle item assessment
1Tensile strength (MPa)≥3839Qualified
2Tensile modulus of elasticity (MPa)≥24003221Qualified
3Elongation(%)≥1.51.53Qualified
4Bending strength (MPa)≥50, and without brittle failure53, and without brittle failureQualified
5Compressive strength (MPa)≥7086Qualified
Tags:repair Adhesive, Leveling Adhesive
