T-shape anchor boltT-shape anchor bolt

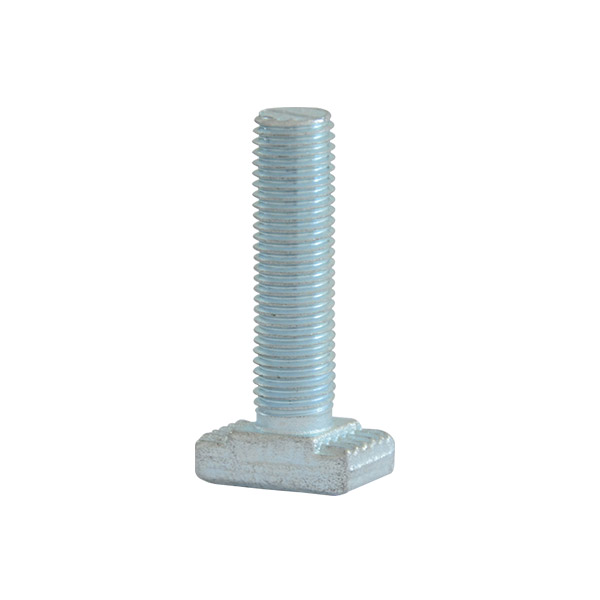

T-shape anchor bolt

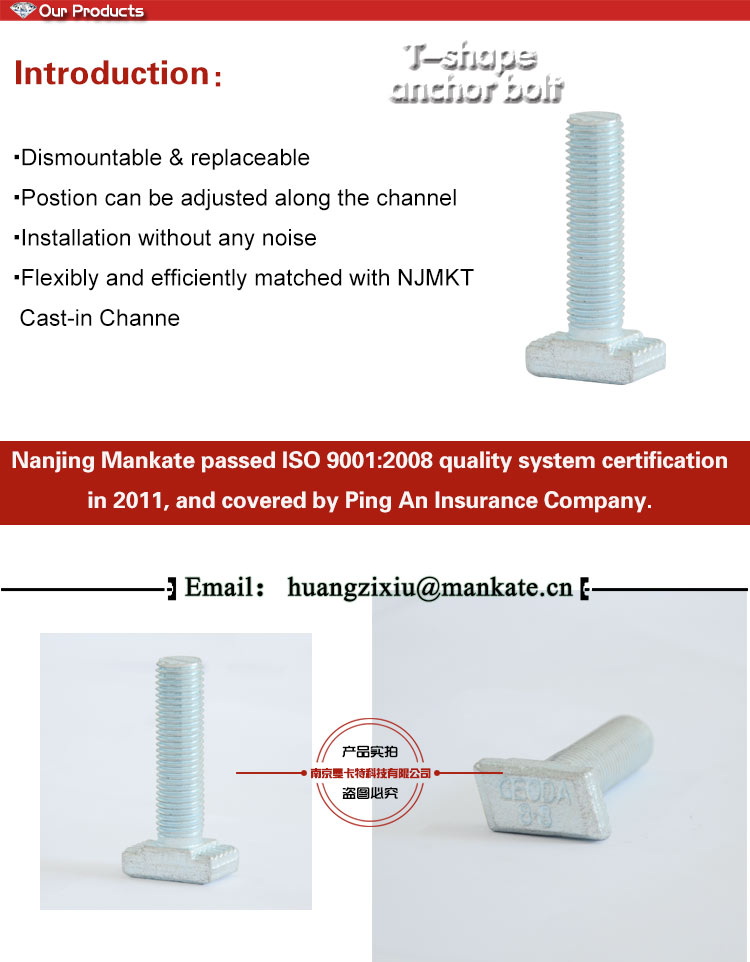

Dismountable & replaceable. Postion can be adjusted along the channel. Permissible sliding load of single T-shape anchor bolt sliding along the axial direction of channel.


Material:

Grade 4.8/ 5.8/ 8.8 low carbon alloy steel

Hot galvanizing  the thickness of coating ≥45μm

highly corrosion-resistant  the thickness of coating ≥10μm

Stainless steel 06Cr17Ni12Mo2Ti


Share Facebook Twitter LinkedIn Pinterest Google+ Addthis

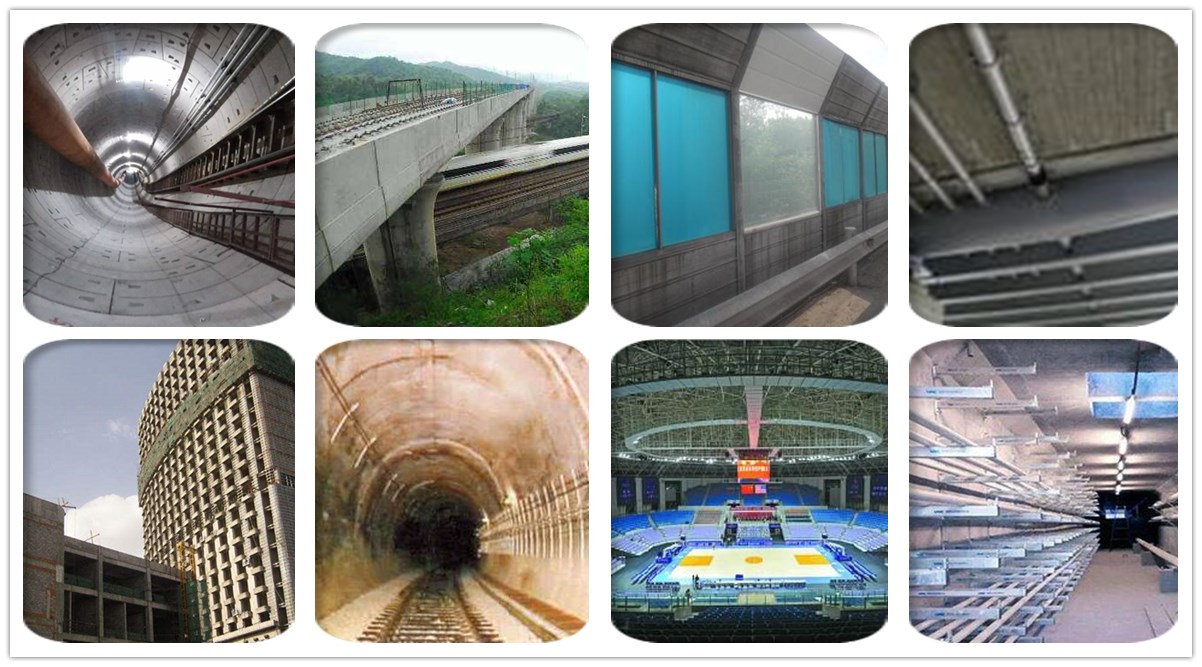

    Application:

    Cast-In Channels .jpgFixing of equipment, channel steel, guide rail and bracket
    Fixing of impact load
    Fastening of external wall
    Fastening of concrete beam & column
    Fastening of base material
    Fastening of pipeline
    Middle-sized load or below

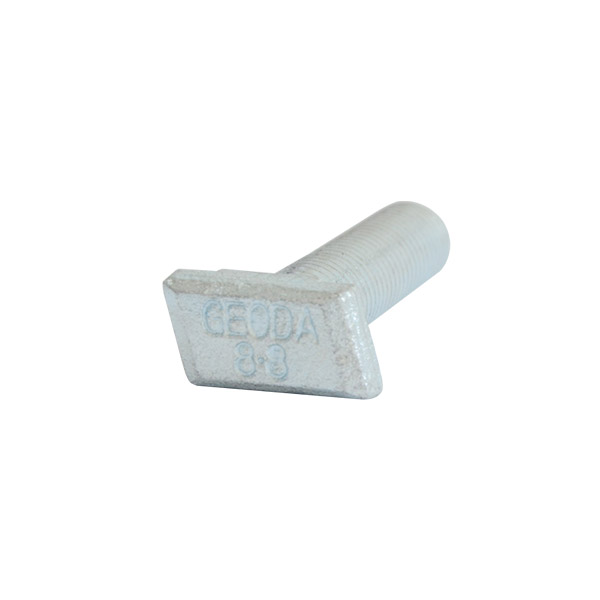

    anchor channel t bolt are widely used in the anchoring system and available in a choice of diameters and lengths for each cast-in channel size fixings to cast-in channels are by drop forged anchor channel t bolt, face-entered into the channel after the concrete has set. The projecting bolt has a notch on the end of the shank so that the correct engagement of the anchor channel t bolt in the channel lips can be clearly seen. The allowable load capacity of a fixing depends on the channel type and the anchor spacing and position

Description


Applications

Application:

Cast-In Channels .jpgFixing of equipment, channel steel, guide rail and bracket
Fixing of impact load
Fastening of external wall
Fastening of concrete beam & column
Fastening of base material
Fastening of pipeline
Middle-sized load or below

Functionality

anchor channel t bolt are widely used in the anchoring system and available in a choice of diameters and lengths for each cast-in channel size fixings to cast-in channels are by drop forged anchor channel t bolt, face-entered into the channel after the concrete has set. The projecting bolt has a notch on the end of the shank so that the correct engagement of the anchor channel t bolt in the channel lips can be clearly seen. The allowable load capacity of a fixing depends on the channel type and the anchor spacing and position

Project

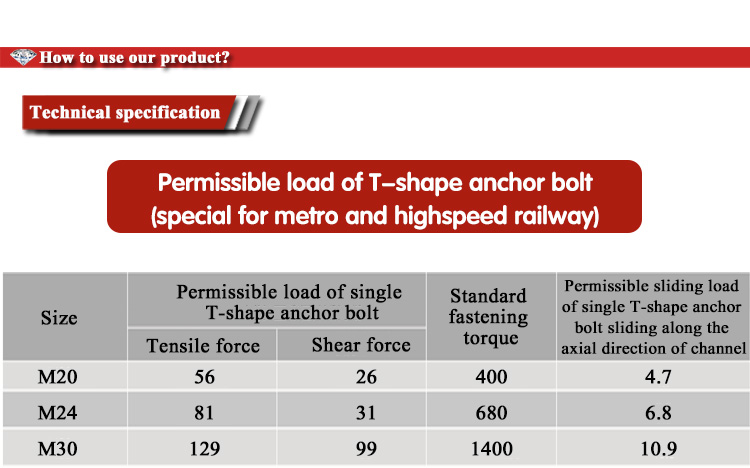

Technical Data
